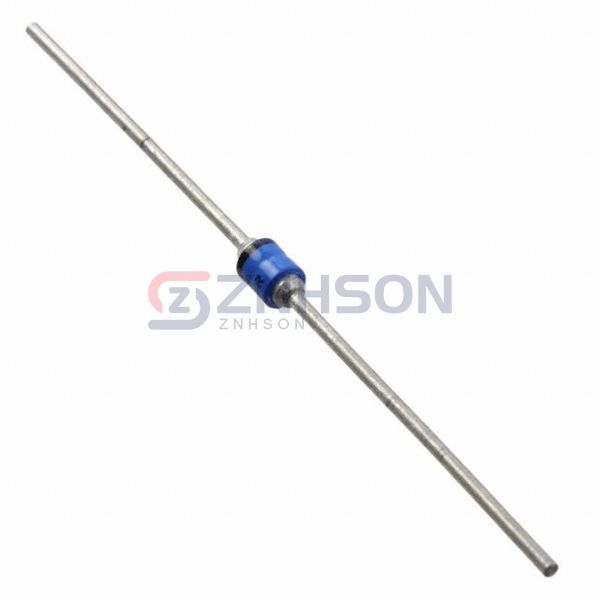

1N5809
Microchip Technology
Microchip Technology
DIODE GEN PURP 100V 3A AXIAL
$6.90
Available to order
Reference Price (USD)
1+
$7.88000
10+
$7.08800
100+
$5.82750
500+
$4.88250
1,000+
$4.41000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your power management systems with 1N5809 Single Rectifier Diodes by Microchip Technology. These diodes are crafted for optimal performance in AC/DC conversion, ensuring smooth and efficient operation. Ideal for use in power adapters, LED drivers, and motor controls, they feature high current capacity, low VF, and excellent thermal stability. Microchip Technology's commitment to quality means you get dependable components every time. Interested? Get in touch for pricing and availability!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: B, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
