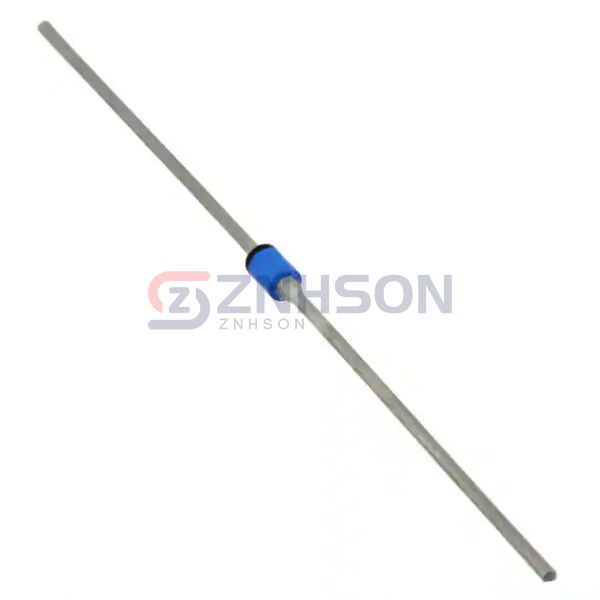

1N5803/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$5.62
Available to order
Reference Price (USD)
1+
$5.62497
500+
$5.5687203
1000+
$5.5124706
1500+
$5.4562209
2000+
$5.3999712
2500+
$5.3437215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuitry with Microchip Technology's 1N5803/TR Single Rectifier Diodes, tailored for seamless integration and high reliability. These diodes excel in applications such as voltage clamping, freewheeling, and reverse polarity protection. With features like high surge withstand capacity and low thermal resistance, they are a must-have for any electronics engineer. Microchip Technology guarantees top-tier quality and performance. Ready to take the next step? Reach out for a detailed consultation!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 75 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: A, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
