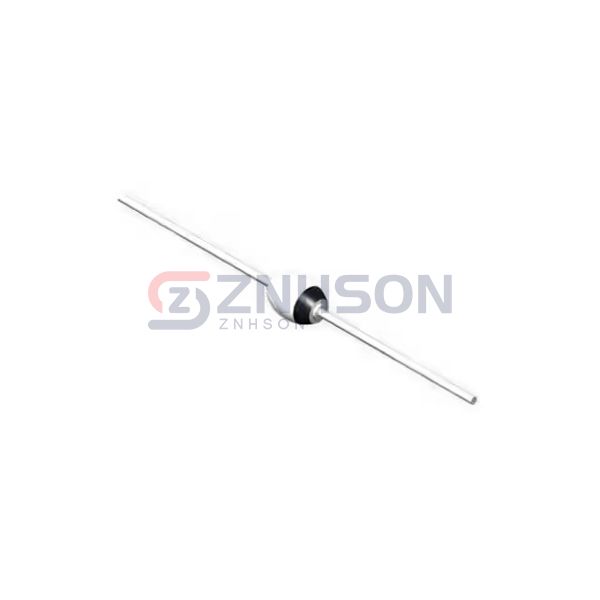

1N5803
Solid State Inc.
Solid State Inc.
DO-204AP 2.5 AMP RECTIFIER
$1.25
Available to order
Reference Price (USD)
570+
$5.44051
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic designs with 1N5803 Single Rectifier Diodes by Solid State Inc., offering unparalleled efficiency and durability. Ideal for power supplies, inverters, and DC-DC converters, these diodes feature ultra-low leakage and high junction temperature tolerance. Their robust design ensures stable performance in extreme conditions. Whether for prototyping or mass production, Solid State Inc. has you covered. Request a quote or technical support today!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io): 2.5A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 75 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-204AP, Axial
- Supplier Device Package: DO-204AP
- Operating Temperature - Junction: -65°C ~ 175°C
