1744489-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 3.96MM
$0.57
Available to order
Reference Price (USD)
1+
$0.30000
10+
$0.28200
100+
$0.20180
500+
$0.17520
1,000+
$0.14853
5,000+
$0.12949
10,000+
$0.12187
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1744489-3 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.575" (14.60mm)
- Insulation Height: 0.127" (3.22mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Glow Wire Compliant
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 7.5A
- Voltage Rating: 250VAC
Related Products
TE Connectivity AMP Connectors
1-5102153-3
Amphenol Sine Systems Corp
ATM13-2P-BM04
Mill-Max Manufacturing Corp.
349-10-117-00-560000
Samtec Inc.
ZSS-105-07-S-D-1115
Samtec Inc.
MMT-117-01-S-DH-P
Samtec Inc.
TFM-125-02-S-D-LC-P-TR
Samtec Inc.
TSM-107-02-LM-DH-A
Hirose Electric Co Ltd
DF51K-6P-2DSA(800)
Samtec Inc.

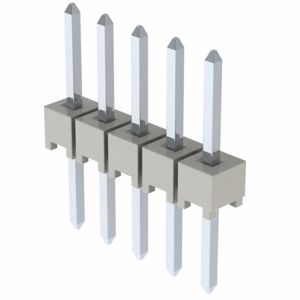

HTSW-105-08-TM-S
