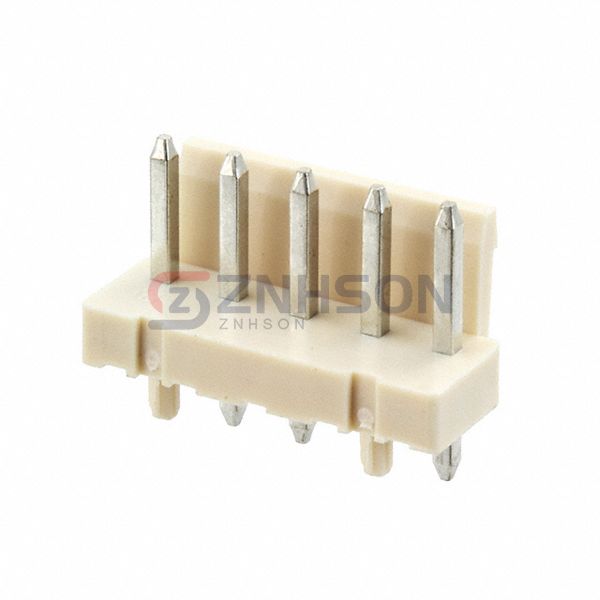

1744429-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 5POS 3.96MM
$1.06
Available to order
Reference Price (USD)
1+
$0.48000
10+
$0.45800
100+
$0.32760
500+
$0.28434
1,000+
$0.24108
5,000+
$0.21017
10,000+
$0.19781
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 1744429-5 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.575" (14.60mm)
- Insulation Height: 0.127" (3.22mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 7.5A
- Voltage Rating: 250VAC
