1722992304
Molex
Molex

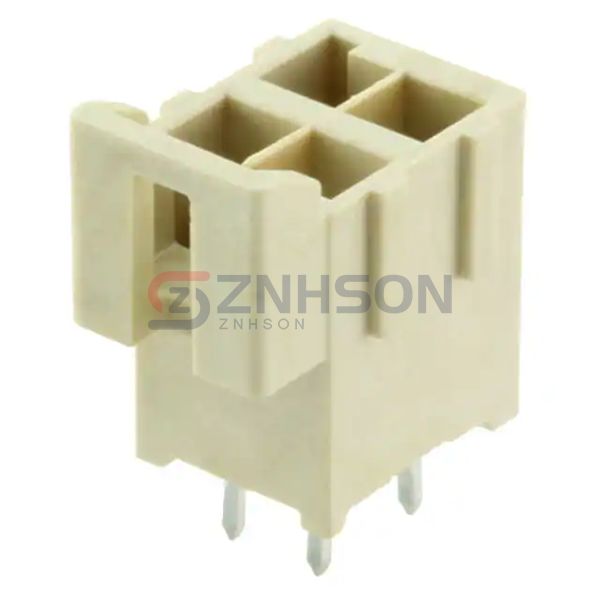

CONN HEADER VERT 4POS 3.5MM
$1.53
Available to order
Reference Price (USD)
1+
$2.24000
10+
$2.03100
100+
$1.74090
500+
$1.45076
1,000+
$1.24350
5,000+
$1.10257
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1722992304 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.181" (4.60mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -40°C ~ 120°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 400V
Related Products
Samtec Inc.
IPBT-105-H1-T-D-K
Sullins Connector Solutions
GEC22SABN-M30
Samtec Inc.
TSW-136-08-G-D
3M
7620-5002 PL
Würth Elektronik
61202022021
Samtec Inc.
FTSH-104-04-F-DH
Preci-Dip

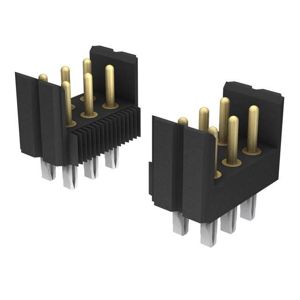

804-V3-081-6B-002101
Amphenol ICC (FCI)

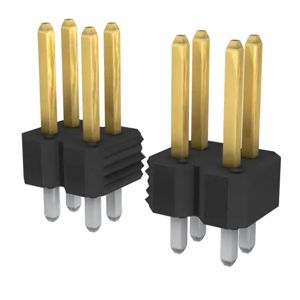

77313-801-34LF
Samtec Inc.

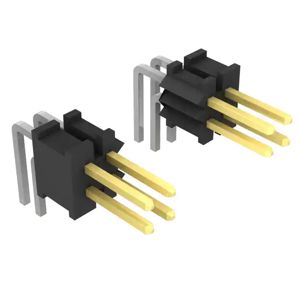

FTSH-125-01-L-D-RA
