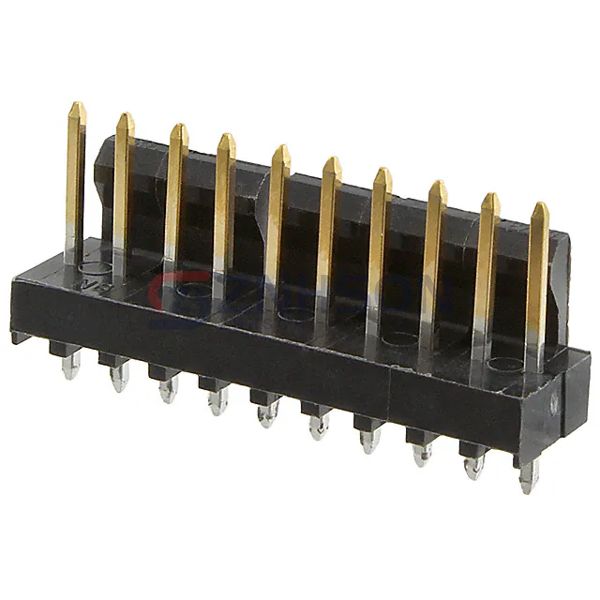

1718561010
Molex
Molex
CONN HEADER VERT 10POS 2.54MM
$1.91
Available to order
Reference Price (USD)
1+
$1.37000
10+
$1.23900
100+
$1.06200
500+
$0.88498
1,000+
$0.75855
5,000+
$0.67258
10,000+
$0.65741
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 1718561010 Molex Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.293" (7.45mm)
- Contact Length - Post: 0.092" (2.34mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-118-02-S-D
Samtec Inc.
FTMH-115-02-F-DV-TR
Samtec Inc.
FTSH-120-02-S-DV
CNC Tech

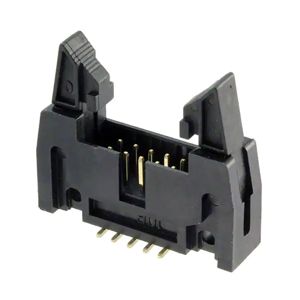

3010-10-003-12-00
Amphenol Sine Systems Corp

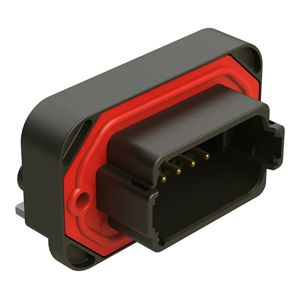

AT13-12PB-BM01
Amphenol ICC (FCI)

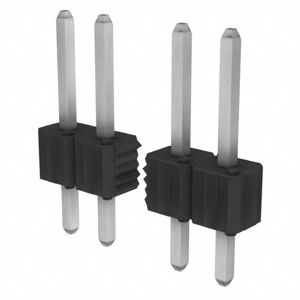

69190-405HLF
Sullins Connector Solutions

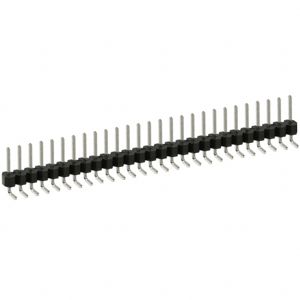

PEC27SBAN
Samtec Inc.

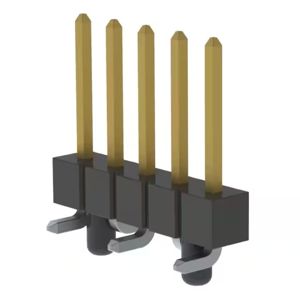

TSM-105-02-S-SV-A-P-TR
Harwin Inc.

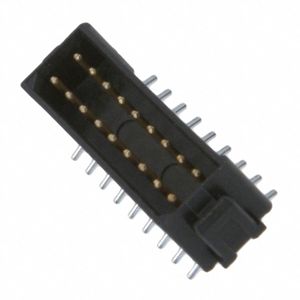

M80-8261842
