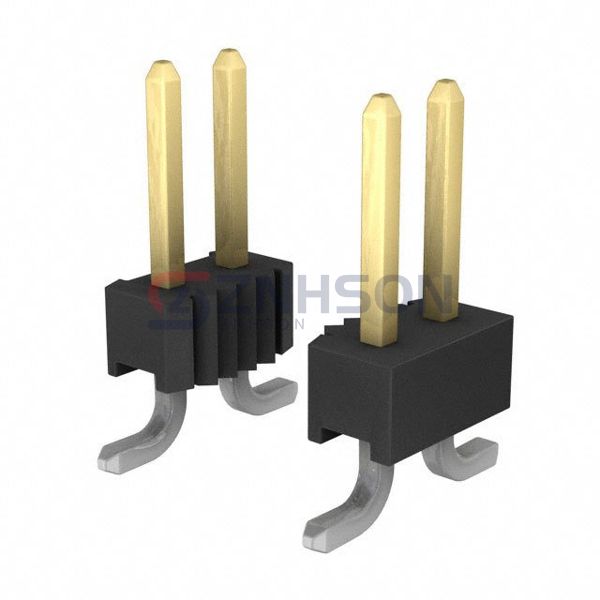

146131-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD 10POS 2.54MM
$2.14
Available to order
Reference Price (USD)
1+
$1.61000
10+
$1.46100
100+
$1.25270
500+
$1.04392
1,000+
$0.89478
5,000+
$0.79337
10,000+
$0.77548
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 146131-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Last Time Buy
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 30VAC
Related Products
TE Connectivity AMP Connectors
6-146276-6
Molex
0901200771
Samtec Inc.
TMM-110-01-F-S-SM-P
Preci-Dip
451-80-258-00-003101
Molex
0436500217
TE Connectivity AMP Connectors

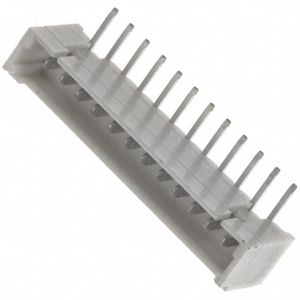

1-1734829-2
Harwin Inc.

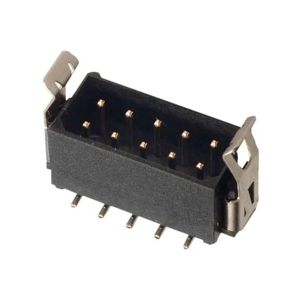

M80-8280822
