1318772-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

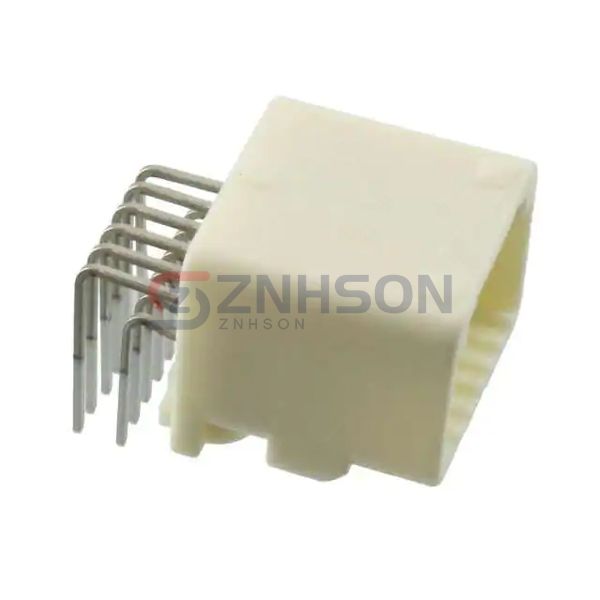

CONN HEADER R/A 12POS 2.2MM
$3.07
Available to order
Reference Price (USD)
1+
$4.26000
23+
$4.09174
115+
$3.40974
506+
$2.89832
1,012+
$2.47209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1318772-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.217" (5.50mm)
- Contact Length - Post: 0.157" (4.00mm)
- Overall Contact Length: -
- Insulation Height: 0.610" (15.49mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Mounting Flange
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 HB
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 12VDC
