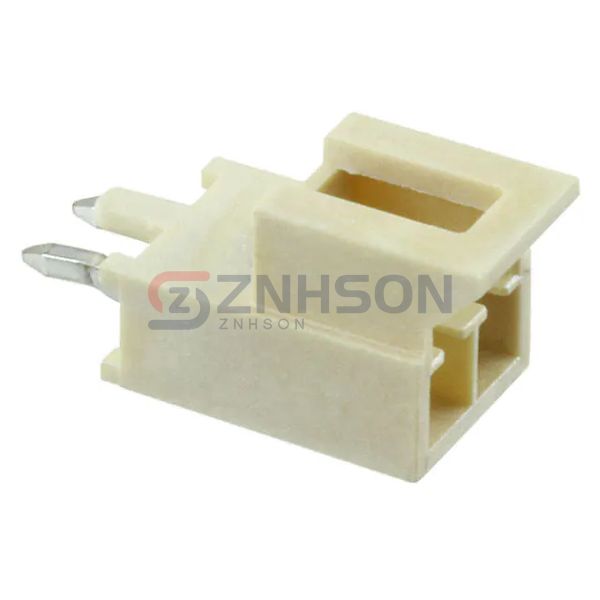

1053092302
Molex
Molex
CONN HEADER VERT 2POS 2.5MM
$1.42
Available to order
Reference Price (USD)
1+
$1.12000
10+
$0.98300
300+
$0.77100
600+
$0.69390
1,200+
$0.61680
5,100+
$0.53970
10,200+
$0.51271
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1053092302 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
JST Sales America Inc.
BM03B-XASS-TF(LF)(SN)
TE Connectivity AMP Connectors
2-2842246-0
Samtec Inc.
FTS-104-02-F-DV-P-TR
Samtec Inc.
TSM-116-01-L-SV-A-TR
Samtec Inc.
FTSH-111-04-F-DH-A-C-TR
Samtec Inc.
TSM-110-02-F-DH
Samtec Inc.

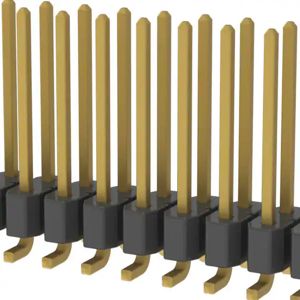

TSM-125-03-G-DV
Amphenol ICC (FCI)

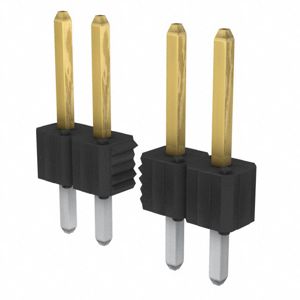

68448-055HLF
