104655-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

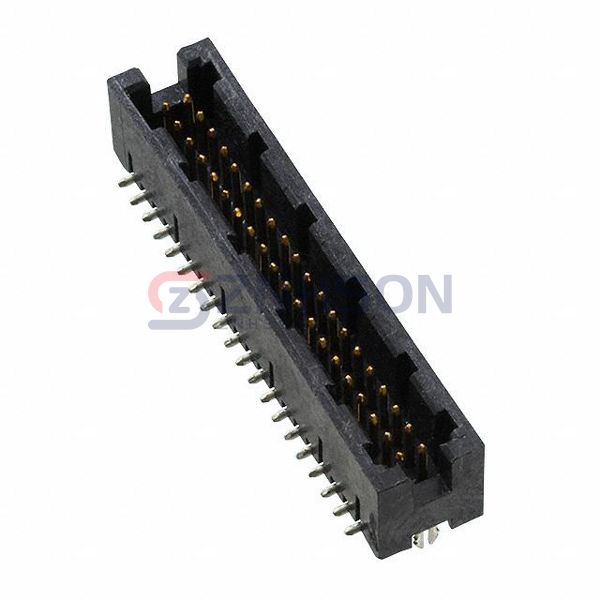

CONN HEADER SMD 40POS 1.27MM
$9.95
Available to order
Reference Price (USD)
1+
$7.46000
18+
$7.15278
108+
$5.90898
504+
$4.97599
1,008+
$4.35400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 104655-5 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.226" (5.74mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.5A per Contact
- Voltage Rating: -
