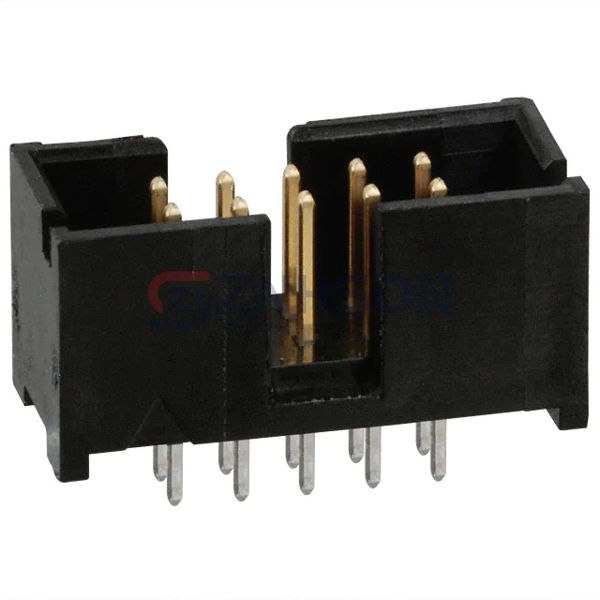

103309-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
$2.70
Available to order
Reference Price (USD)
1+
$2.19000
10+
$2.00400
100+
$1.73910
500+
$1.47446
1,000+
$1.28544
5,000+
$1.15689
10,000+
$1.13421
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 103309-1 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the TE Connectivity AMP Connectors difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.388" (9.86mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: -
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-112-08-G-S-RA
Samtec Inc.
FTSH-110-01-F-DV-K-A-TR
Harwin Inc.
M80-7712022
Preci-Dip
356-V3-157-00-014101
Amphenol ICC (FCI)
68021-118HLF
Würth Elektronik
662104145021
TE Connectivity AMP Connectors
1-103904-1
Samtec Inc.
TMM-113-03-T-D
TE Connectivity AMP Connectors

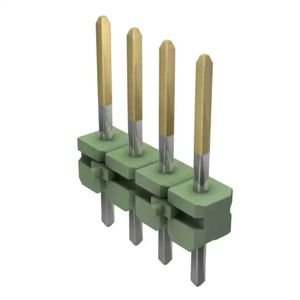

825433-4
