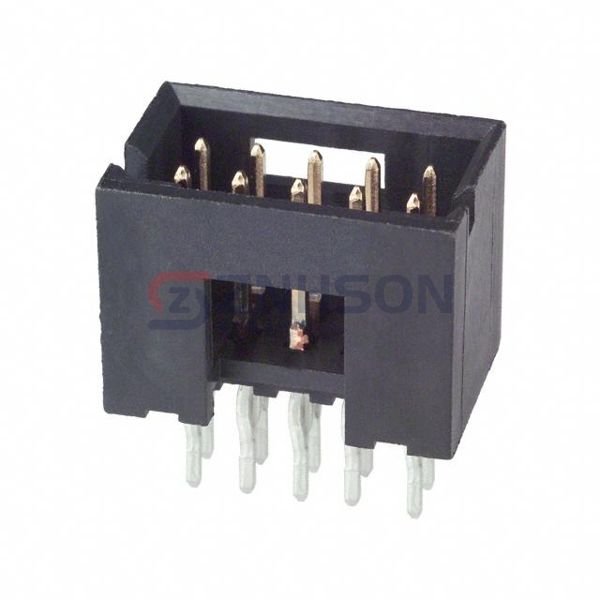

102699-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
$6.64
Available to order
Reference Price (USD)
1+
$7.85000
10+
$7.52100
200+
$6.21300
600+
$5.23200
1,000+
$4.57800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 102699-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.250" (6.35mm)
- Overall Contact Length: 0.660" (16.76mm)
- Insulation Height: 0.440" (11.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
