10142708-12200LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

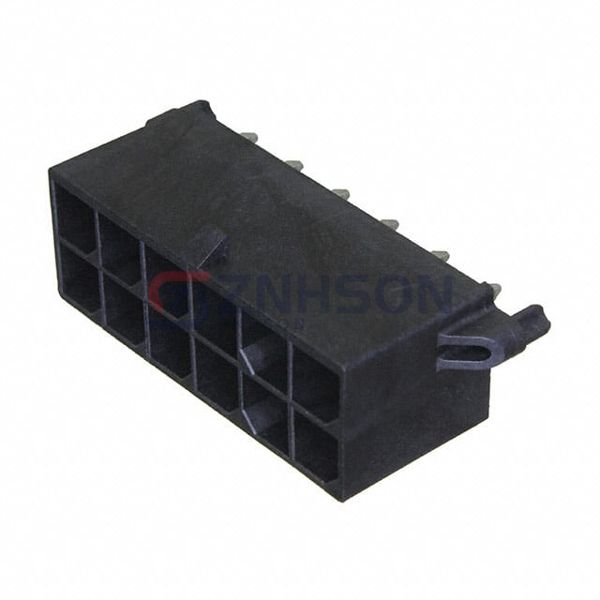

CONN HEADER VERT 12POS 5.7MM
$2.49
Available to order
Reference Price (USD)
1+
$2.63000
10+
$2.39000
25+
$2.24400
50+
$2.14660
117+
$2.04897
351+
$1.85382
585+
$1.70747
1,053+
$1.46355
2,574+
$1.36598
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10142708-12200LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.224" (5.70mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.224" (5.70mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.583" (14.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 600VAC/DC
