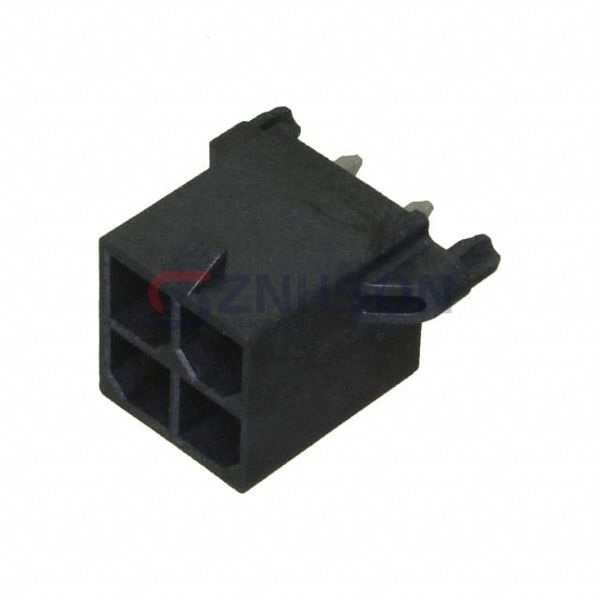

10142708-04200LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 4POS 5.7MM
$1.48
Available to order
Reference Price (USD)
1+
$1.48000
10+
$1.34700
25+
$1.26440
50+
$1.20940
100+
$1.15440
260+
$1.04442
520+
$0.96198
1,040+
$0.82455
2,600+
$0.76958
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10142708-04200LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.224" (5.70mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.224" (5.70mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.583" (14.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 600VAC/DC
