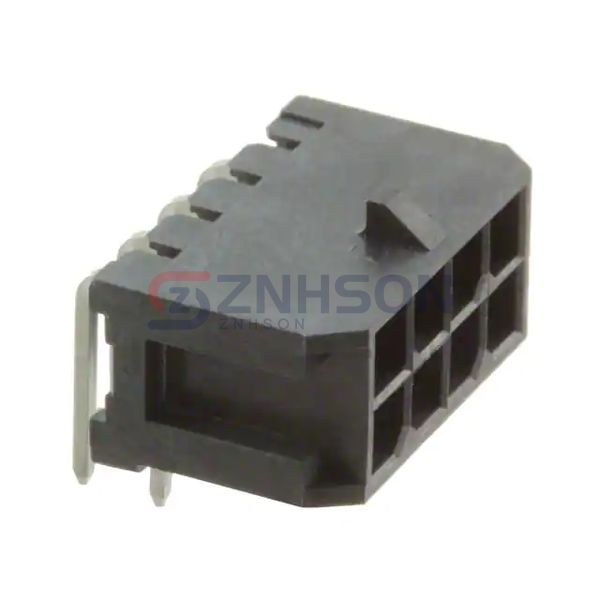

10127720-081LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER R/A 8POS 3MM
$0.88
Available to order
Reference Price (USD)
1+
$0.79000
10+
$0.70300
375+
$0.56216
750+
$0.49828
1,125+
$0.45995
5,250+
$0.40885
10,125+
$0.39096
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10127720-081LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.285" (7.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600VAC/DC
Related Products
Samtec Inc.
ZSS-124-08-G-D-790-LL
Molex
0022045103
TE Connectivity AMP Connectors
5176264-1
Molex
0022233040
Adam Tech
2PH1-12-UA-SMT-B
TE Connectivity AMP Connectors
499141-3
TE Connectivity AMP Connectors
1-103669-6
Mill-Max Manufacturing Corp.

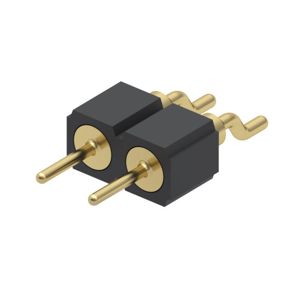

330-10-102-40-027000
