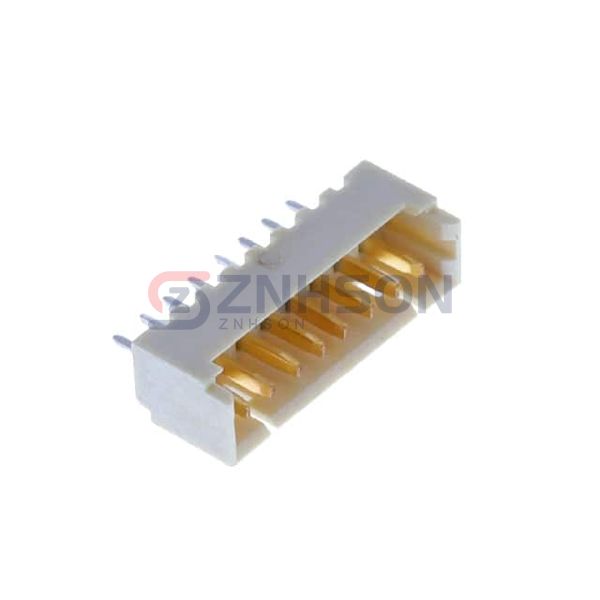

10114829-13108LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
WTB 1.25 WAFER 180 DIP
$1.23
Available to order
Reference Price (USD)
1+
$1.23000
500+
$1.2177
1000+
$1.2054
1500+
$1.1931
2000+
$1.1808
2500+
$1.1685
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10114829-13108LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 125V
