10080054-115LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

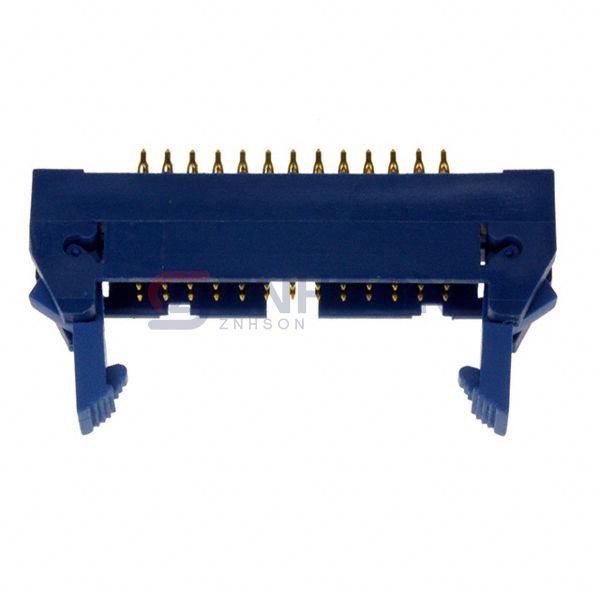

CONN HEADER VERT 26POS 2.54MM
$6.07
Available to order
Reference Price (USD)
1+
$6.07000
10+
$5.81700
100+
$4.80570
500+
$4.04688
1,000+
$3.54102
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 10080054-115LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.234" (5.94mm)
- Contact Length - Post: 0.160" (4.06mm)
- Overall Contact Length: 0.629" (15.97mm)
- Insulation Height: 0.640" (16.26mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze Alloy
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): -
- Voltage Rating: -
