10075025-G01-12ULF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

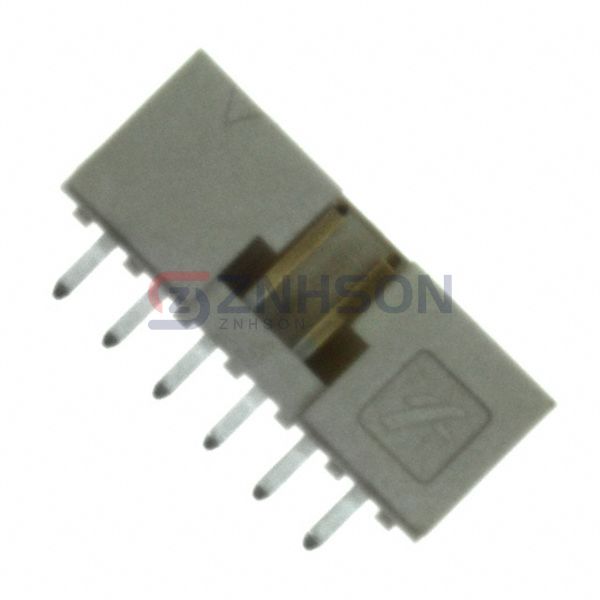

CONN HEADER VERT 12POS 2MM
$1.67
Available to order
Reference Price (USD)
1+
$1.42000
40+
$1.17300
120+
$1.07517
520+
$0.87965
1,000+
$0.78192
5,000+
$0.68418
10,000+
$0.64997
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10075025-G01-12ULF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.079" (2.00mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
