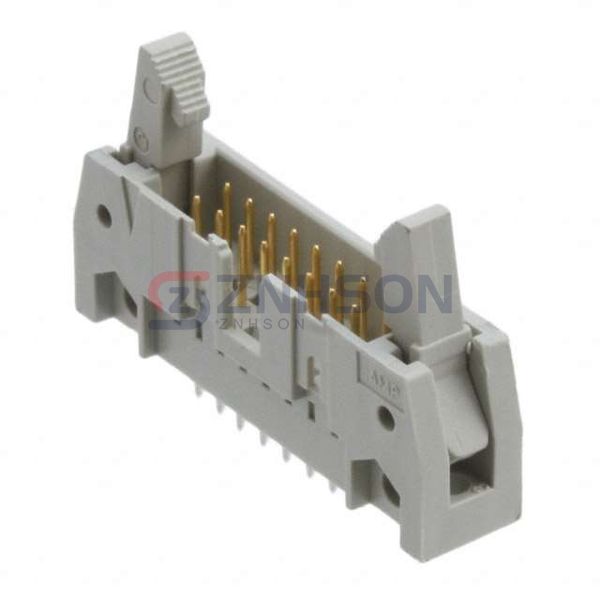

1-828588-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 16POS 2.54MM
$2.30
Available to order
Reference Price (USD)
1+
$2.30000
500+
$2.277
1000+
$2.254
1500+
$2.231
2000+
$2.208
2500+
$2.185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 1-828588-6 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.246" (6.25mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.652" (16.56mm)
- Insulation Height: 0.543" (13.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 31.5µin (0.80µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
