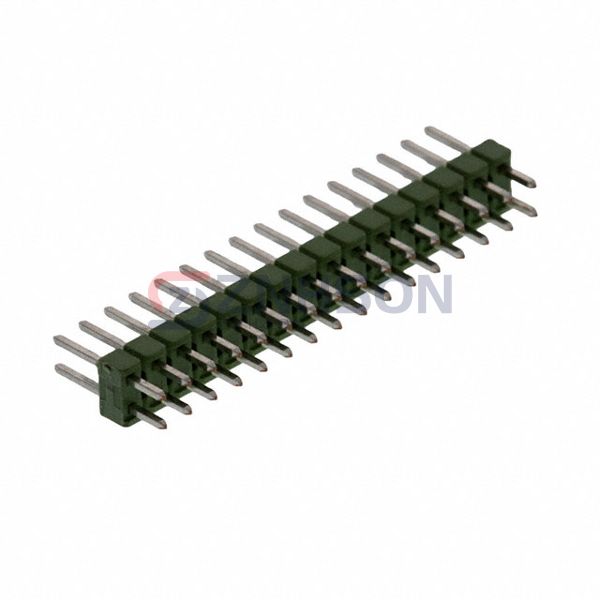

1-826942-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 32POS 2.54MM
$2.09
Available to order
Reference Price (USD)
1+
$2.16000
10+
$1.96300
100+
$1.68270
500+
$1.40224
1,000+
$1.20192
5,000+
$1.06570
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-826942-6 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust TE Connectivity AMP Connectors for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.465" (11.81mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 5A
- Voltage Rating: -
