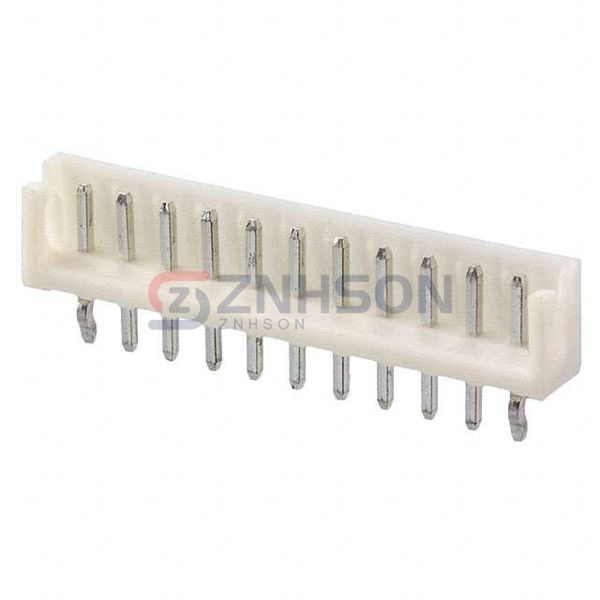

1-440052-1

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.098" (2.50mm)
• Number of Positions: 11
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 3 Wall
• Mounting Type: Through Hole
• Termination: Press-Fit, Solder
• Fastening Type: Friction Lock
• Contact Length - Mating: 0.136" (3.45mm)
• Contact Length - Post: 0.134" (3.40mm)
• Overall Contact Length: 0.335" (8.51mm)
• Insulation Height: 0.236" (6.00mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 80.0µin (2.03µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Thermoplastic
• Features: -
• Operating Temperature: -25°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 3A
• Voltage Rating: 250V
