1-1827876-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

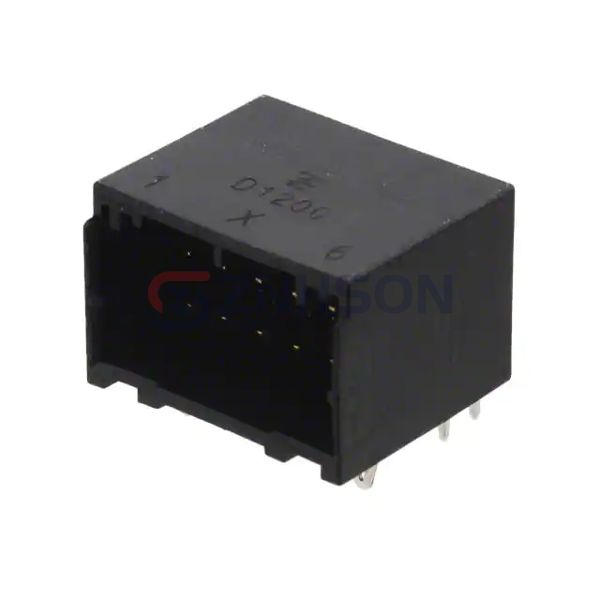

CONN HEADER R/A 12POS 2.5MM
$4.58
Available to order
Reference Price (USD)
1+
$3.23000
10+
$2.92900
100+
$2.51080
500+
$2.09234
1,000+
$1.79343
5,000+
$1.59017
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with 1-1827876-6 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.130" (3.30mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A
- Voltage Rating: 250V
