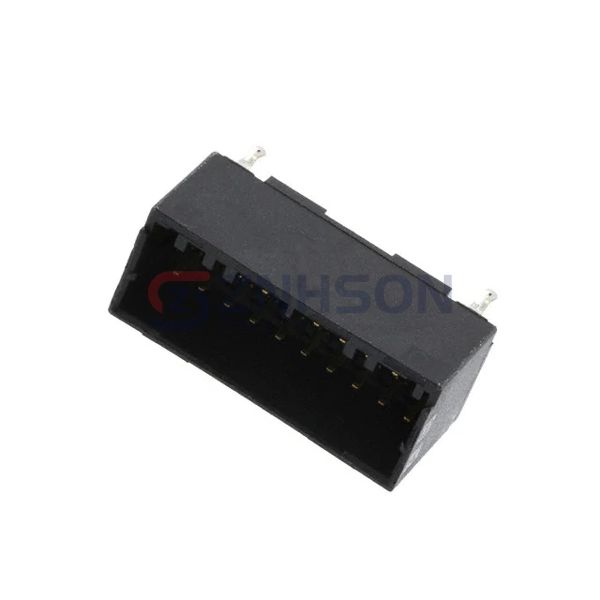

1-1827875-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.5MM
$3.86
Available to order
Reference Price (USD)
1+
$4.34000
17+
$4.18059
34+
$3.85853
51+
$3.69784
102+
$3.53706
255+
$3.13514
510+
$3.05475
1,003+
$2.65281
2,516+
$2.49203
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-1827875-0 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust TE Connectivity AMP Connectors for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.130" (3.30mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.490" (12.44mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A
- Voltage Rating: 250V
