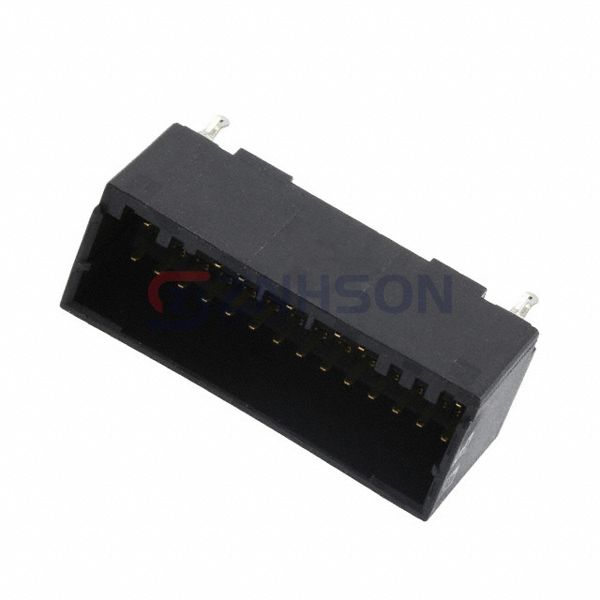

1-1827872-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 28POS 2MM
$6.74
Available to order
Reference Price (USD)
1+
$5.50000
15+
$5.29467
30+
$4.88767
60+
$4.68400
105+
$4.48029
255+
$3.97114
510+
$3.86933
1,005+
$3.36021
2,505+
$3.15656
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 1-1827872-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 28
- Number of Rows: 2
- Row Spacing - Mating: 0.130" (3.30mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.490" (12.44mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 125V
