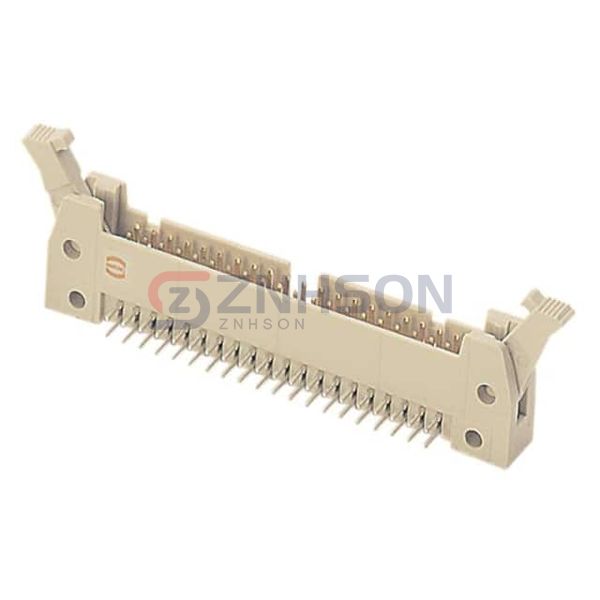

09185405903

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 40
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Latch Lock/Eject Hooks, Long
• Contact Length - Mating: 0.240" (6.10mm)
• Contact Length - Post: 0.114" (2.90mm)
• Overall Contact Length: -
• Insulation Height: 0.335" (8.51mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
• Features: Keying Slot, Mounting Flange
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Gray
• Current Rating (Amps): -
• Voltage Rating: -
