09185147914
HARTING
HARTING

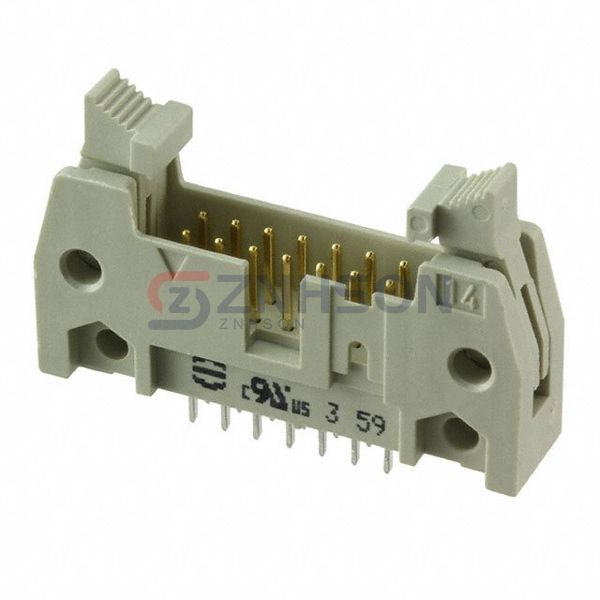

CONN HEADER VERT 14POS 2.54MM
$2.72
Available to order
Reference Price (USD)
1+
$2.40000
10+
$2.18100
25+
$2.04720
50+
$1.95800
100+
$1.86900
300+
$1.69100
500+
$1.55750
1,000+
$1.33500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 09185147914 HARTING Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.650" (16.51mm)
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
