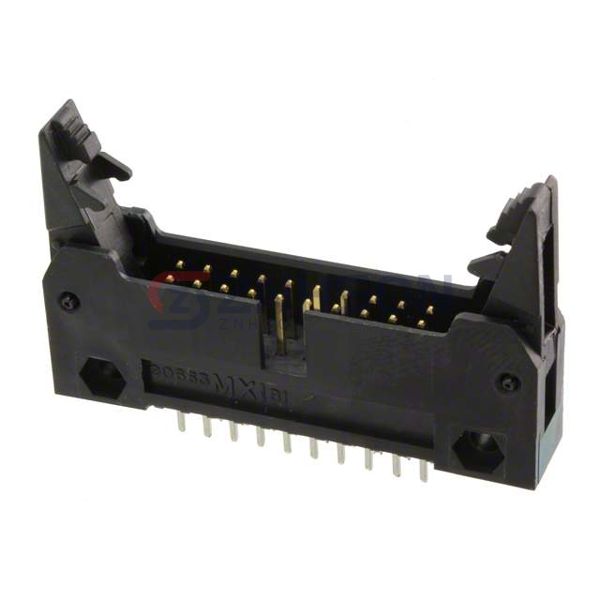

0906631202
Molex
Molex
CONN HEADER VERT 20POS 2.54MM
$0.00
Available to order
Reference Price (USD)
1+
$2.98000
10+
$2.86000
100+
$2.38300
504+
$2.02556
1,008+
$1.72768
5,040+
$1.54895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0906631202 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.200" (5.08mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.657" (16.70mm)
- Insulation Height: 0.642" (16.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: Mounting Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
