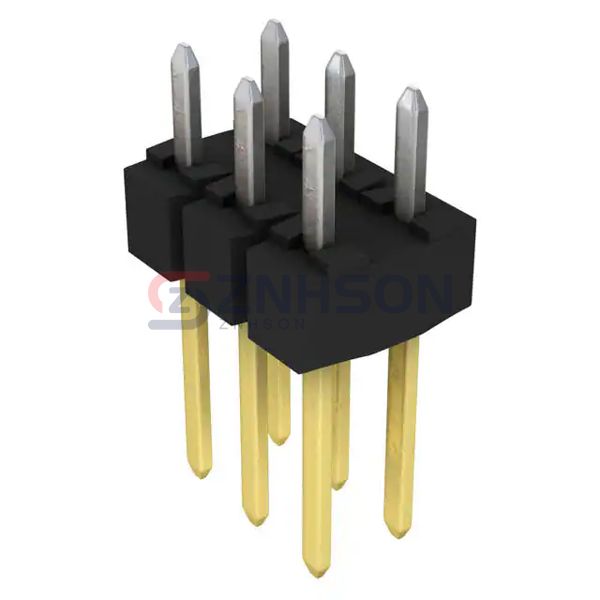

0901310763
Molex
Molex
CONN HEADER VERT 6POS 2.54MM
$1.85
Available to order
Reference Price (USD)
1+
$1.45000
10+
$1.31800
100+
$1.12980
500+
$0.94150
1,000+
$0.80700
5,000+
$0.71554
10,000+
$0.69940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0901310763 Molex Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Molex difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.478" (12.15mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
