0901200769
Molex
Molex
CONN HEADER VERT 9POS 2.54MM
$1.93
Available to order
Reference Price (USD)
1+
$1.83000
10+
$1.66400
25+
$1.56200
50+
$1.49400
100+
$1.42620
250+
$1.29036
500+
$1.18848
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0901200769 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.478" (12.15mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-120-02-T-SH-A
Samtec Inc.
HTSW-101-07-SM-S
Hirose Electric Co Ltd
A1-40PA-2.54DSA(71)
Samtec Inc.
TSM-119-02-T-DH-A
Molex
0015911624
Mill-Max Manufacturing Corp.
399-10-138-10-009000
Preci-Dip
890-70-008-20-001101
Sullins Connector Solutions
PRPC002SFAN-RC
Samtec Inc.

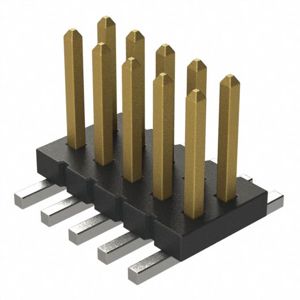

FTS-105-04-S-DV
