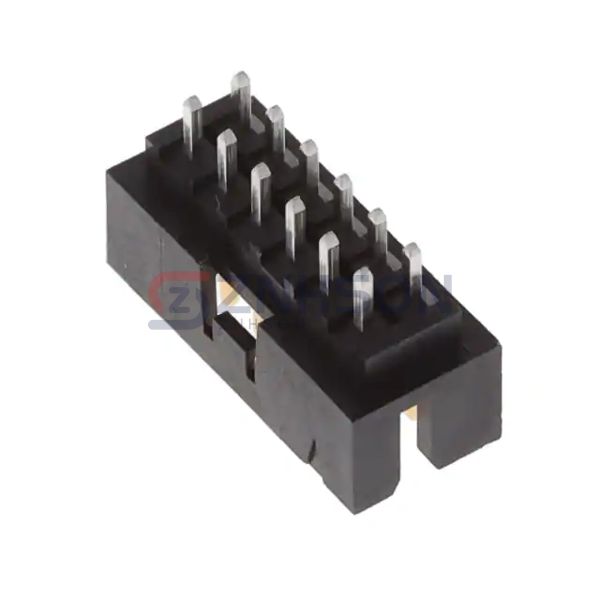

0878311242
Molex
Molex
CONN HEADER VERT 12POS 2MM
$2.64
Available to order
Reference Price (USD)
1+
$2.07000
36+
$1.76528
108+
$1.61176
504+
$1.34313
1,008+
$1.15125
5,004+
$1.02078
10,008+
$0.99775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0878311242 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125V
Related Products
Samtec Inc.
TSM-131-05-S-DV-A
Amphenol ICC (FCI)
54202-G0805CLF
Samtec Inc.
MMT-112-01-F-DH-TR
Preci-Dip
350-10-135-01-609101
Molex
90120-0960
Oupiin
2011-2X30G00SB
Molex
0469842231
Samtec Inc.

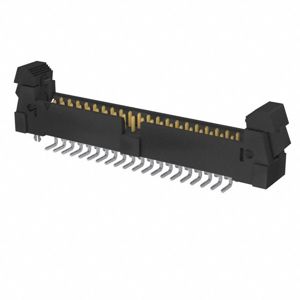

EHT-120-01-L-D-SM-LC
