0757571441
Molex
Molex

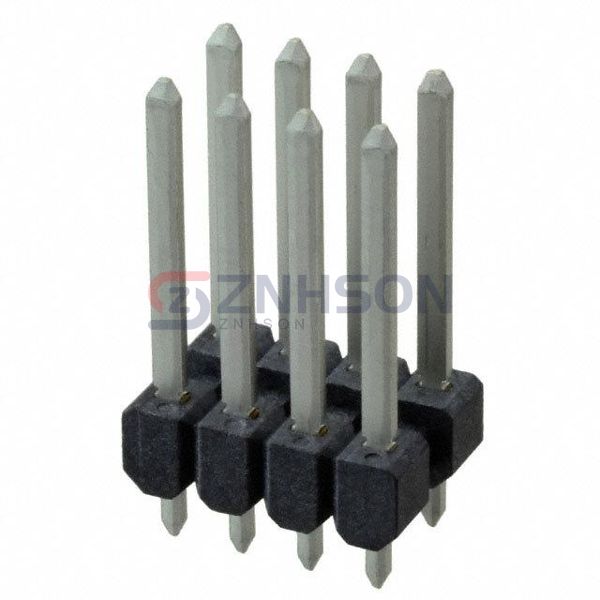

CONN HEADER VERT 8POS 3.5MM
$1.82
Available to order
Reference Price (USD)
1+
$1.40000
10+
$1.27100
100+
$1.08930
532+
$0.90773
1,064+
$0.77805
5,320+
$0.68987
10,108+
$0.67431
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0757571441 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Blade
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.236" (6.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.441" (11.20mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.177" (4.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Cartridge Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-117-01-G-Q-RA
Samtec Inc.
FTSH-114-01-L-DH
Samtec Inc.
HTSW-108-08-G-S-RA-005
Preci-Dip
451-80-270-00-017101
TE Connectivity AMP Connectors
5-103908-1
Molex
0015910100
Samtec Inc.
MMT-135-01-S-MT
Sullins Connector Solutions

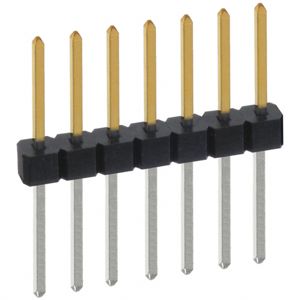

PBC07SFCN
Molex

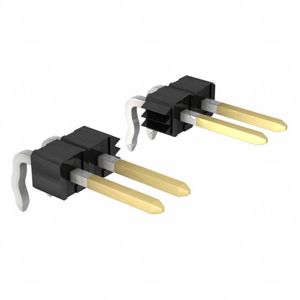

0022289182
