0559171630
Molex
Molex

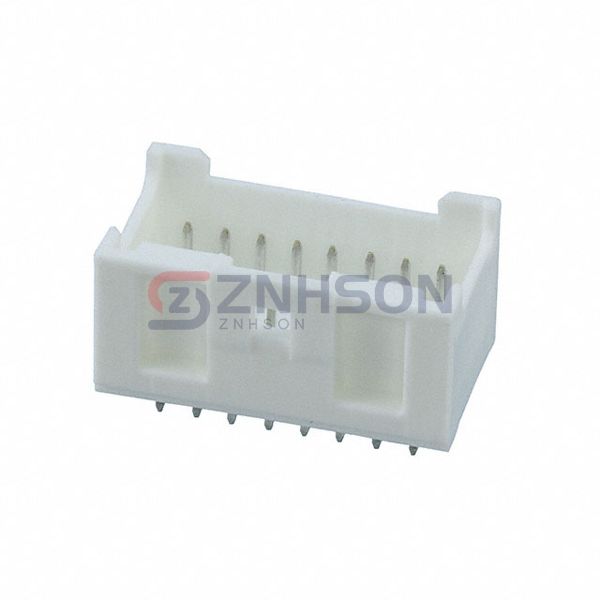

CONN HEADER VERT 16POS 2MM
$1.95
Available to order
Reference Price (USD)
1+
$1.28000
10+
$1.12200
100+
$0.96820
600+
$0.79218
1,200+
$0.70416
5,400+
$0.61614
10,200+
$0.58533
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0559171630 Molex Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Molex for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.366" (9.30mm)
- Insulation Height: 0.384" (9.75mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
