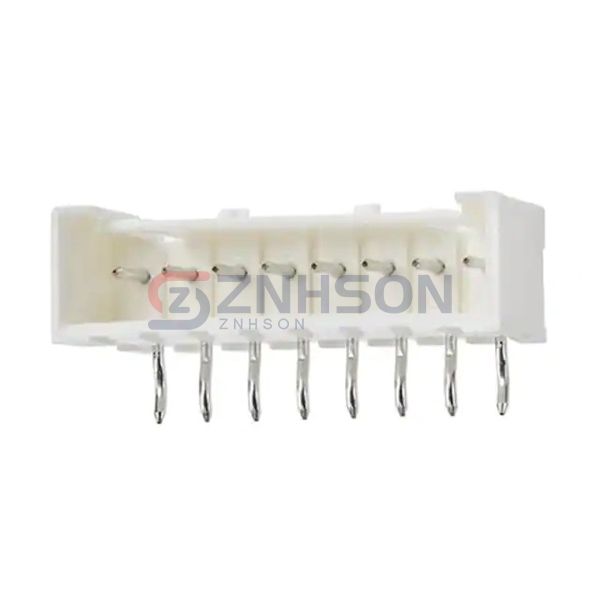

0534269110

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.098" (2.50mm)
• Number of Positions: 11
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Kinked Pin, Solder
• Fastening Type: Locking Ramp
• Contact Length - Mating: 0.157" (4.00mm)
• Contact Length - Post: 0.134" (3.40mm)
• Overall Contact Length: -
• Insulation Height: 0.264" (6.70mm)
• Contact Shape: Circular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 39.4µin (1.00µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Polyamide (PA), Nylon, Glass Filled
• Features: Glow Wire Compliant
• Operating Temperature: -40°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 3A per Contact
• Voltage Rating: 250VAC/DC
