0533985015
Molex
Molex

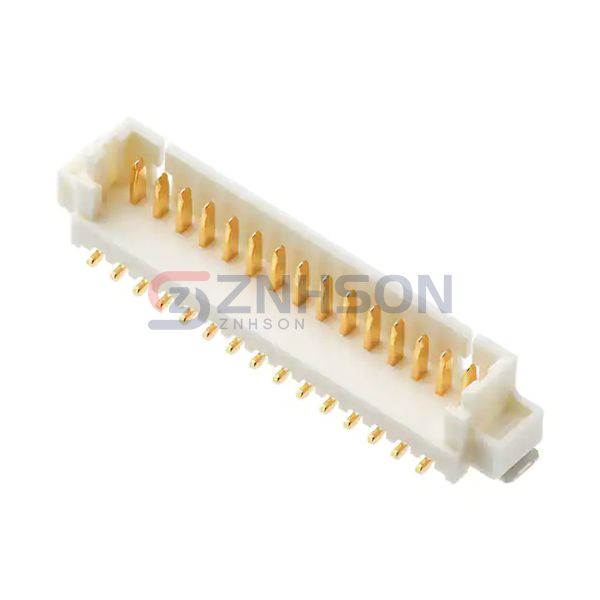

HDR VERT 15 CIRC 1.25 SMD AU
$1.46
Available to order
Reference Price (USD)
1+
$1.46059
500+
$1.4459841
1000+
$1.4313782
1500+
$1.4167723
2000+
$1.4021664
2500+
$1.3875605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0533985015 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.185" (4.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC/DC
