0430451418
Molex
Molex

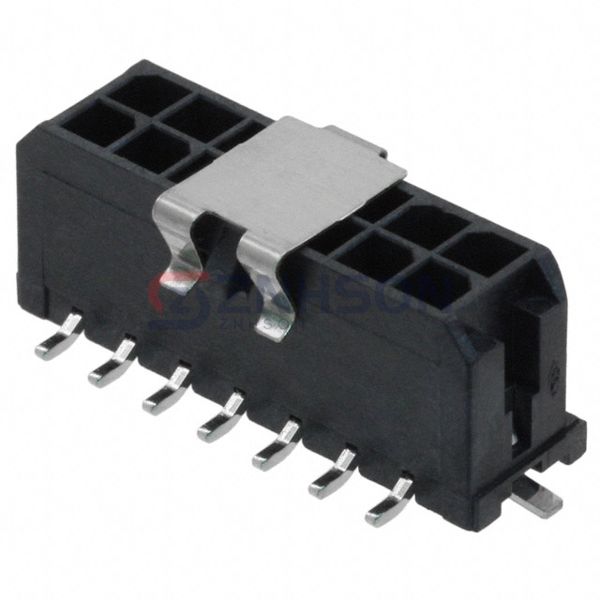

CONN HEADER SMD 14POS 3MM
$4.62
Available to order
Reference Price (USD)
200+
$3.19220
400+
$2.79318
600+
$2.71337
1,000+
$2.31435
2,000+
$2.23454
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430451418 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
TE Connectivity AMP Connectors
2-1445086-2
Oupiin
2011-1X40G00RB
Samtec Inc.
FTE-128-02-G-DV-A-P
Würth Elektronik
61304021021
Samtec Inc.
TMM-102-05-T-S-SM
Samtec Inc.
FTMH-120-02-FM-DV-A-P
Samtec Inc.
FTSH-105-02-FM-DV-P-TR
Samtec Inc.

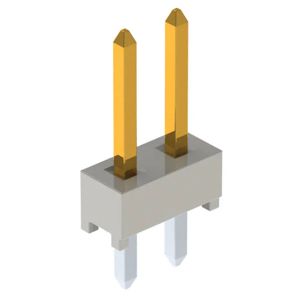

HTSW-101-07-FM-D
