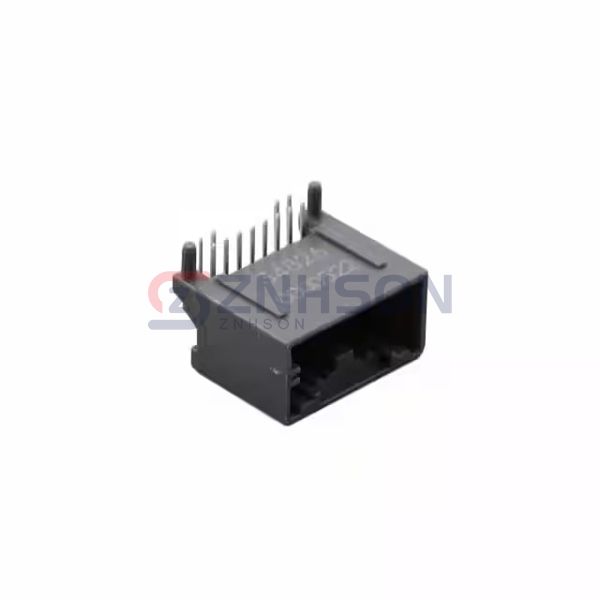

0348260126
Molex
Molex
MINI50 RAHDR 12CKT DKGY POL C TR
$2.17
Available to order
Reference Price (USD)
1+
$2.17000
500+
$2.1483
1000+
$2.1266
1500+
$2.1049
2000+
$2.0832
2500+
$2.0615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0348260126 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.219" (5.56mm)
- Contact Length - Post: 0.110" (2.80mm)
- Overall Contact Length: -
- Insulation Height: 0.460" (11.68mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 100°C
- Ingress Protection: -
- Material Flammability Rating: UL94 HB
- Insulation Color: Gray
- Current Rating (Amps): 4A per Contact
- Voltage Rating: 14V
Related Products
TE Connectivity AMP Connectors
103908-6
Molex
0026483123
Samtec Inc.
EHF-120-01-F-D-SM
Preci-Dip
892-80-028-10-002101
Molex

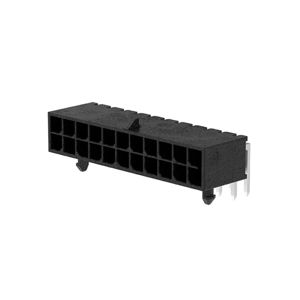

2125282001
Preci-Dip

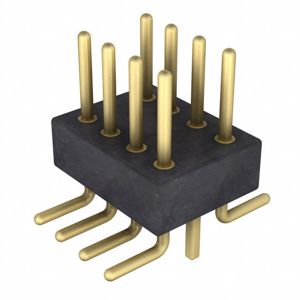

852-10-008-30-051101
Samtec Inc.

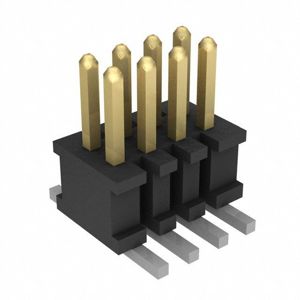

FTSH-104-02-S-DV-P
Samtec Inc.

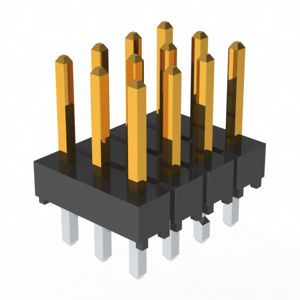

TSW-104-07-L-T-LL
