0026482203
Molex
Molex
CONN HEADER VERT 20POS 3.96MM
$5.07
Available to order
Reference Price (USD)
1+
$5.07000
10+
$4.86600
25+
$4.46080
50+
$4.25800
100+
$4.05520
250+
$3.54832
500+
$3.44692
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 0026482203 Molex Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.360" (9.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
450-80-216-00-006101
TE Connectivity AMP Connectors
9-146304-0-01
Samtec Inc.
TMM-104-05-T-D-SM-TR
JST Sales America Inc.
BM05B-ZESS-TBT(LF)(SN)
Molex
1053122214
Samtec Inc.
BBS-127-G-B
Samtec Inc.
ZSS-105-04-G-D-740
Preci-Dip

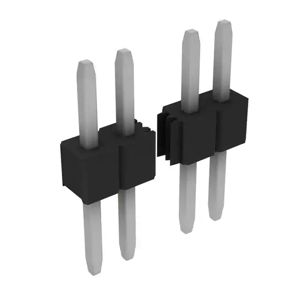

890-80-011-10-003101
EDAC Inc.

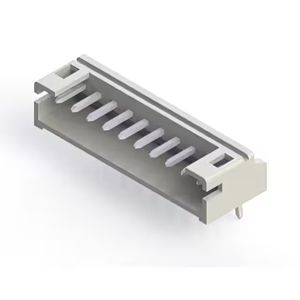

140-510-415-000
