0026482096
Molex
Molex
CONN HEADER R/A 9POS 3.96MM
$2.55
Available to order
Reference Price (USD)
1+
$2.55000
10+
$2.44900
25+
$2.24520
50+
$2.14300
100+
$2.04100
250+
$1.78588
500+
$1.73486
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026482096 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.212" (5.38mm)
- Overall Contact Length: -
- Insulation Height: 0.355" (9.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
854-10-009-20-001101
TE Connectivity AMP Connectors
9-146280-0-38
Amphenol ICC (FCI)
98414-G04-10ULF
Samtec Inc.
ZSS-103-06-L-D-980
Samtec Inc.
TFM-107-02-S-D
Samtec Inc.
TFML-115-02-S-D-LC
Samtec Inc.
TSM-105-02-S-DV-009-P-TR
METZ CONNECT USA Inc.

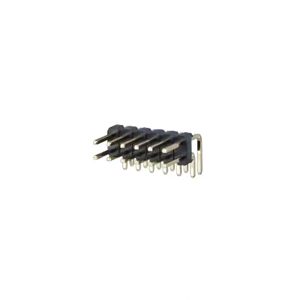

PR20205HBDN
