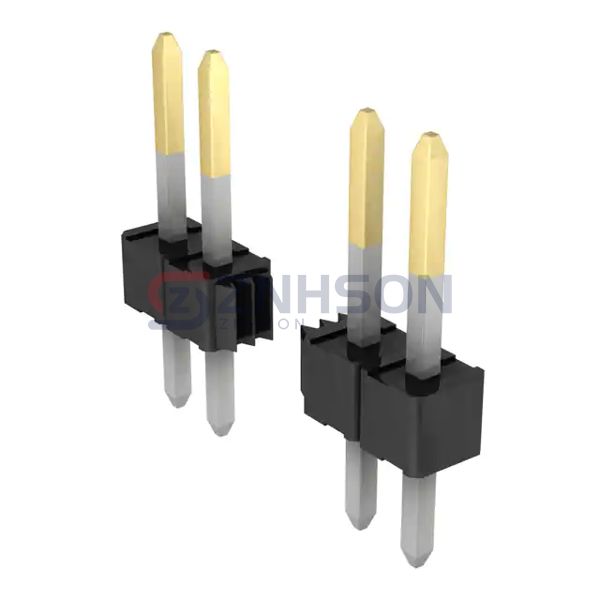

0022284244
Molex
Molex
CONN HEADER VERT 24POS 2.54MM
$1.82
Available to order
Reference Price (USD)
1+
$1.82000
10+
$1.65200
25+
$1.55080
50+
$1.48360
100+
$1.41610
250+
$1.28120
500+
$1.18006
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022284244 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol Sine Systems Corp
AT04-08PA-BM03
Samtec Inc.
TFM-110-02-F-D-LC
Samtec Inc.
TSM-114-03-T-SV-LC
Samtec Inc.
TSM-124-04-L-SV-A
Samtec Inc.
TSW-120-18-L-D
Sullins Connector Solutions
PBC16SBAN
Molex
90136-1307
TE Connectivity AMP Connectors

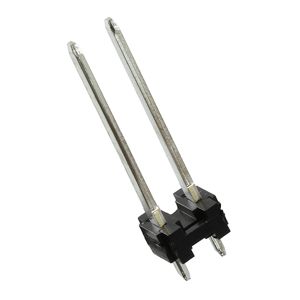

85875-7
Samtec Inc.

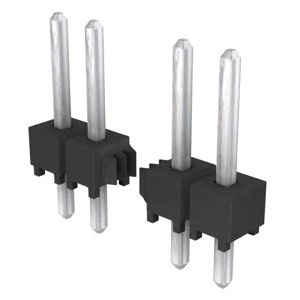

TSW-118-07-T-S
