0022284216
Molex
Molex
CONN HEADER VERT 21POS 2.54MM
$0.71
Available to order
Reference Price (USD)
1+
$0.70507
500+
$0.6980193
1000+
$0.6909686
1500+
$0.6839179
2000+
$0.6768672
2500+
$0.6698165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 0022284216 Molex Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 21
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.455" (11.56mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTMH-132-02-L-DH-K
Samtec Inc.
TSM-104-01-S-SV-A
Samtec Inc.
TMMH-124-04-F-D
Samtec Inc.
FTSH-140-01-L-DV-A-P-TR
Samtec Inc.

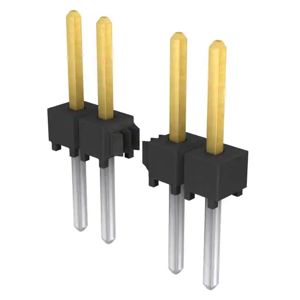

TSW-106-26-L-S
Samtec Inc.
LTMM-113-02-S-D-SM-LC
Molex
0026644110
Molex

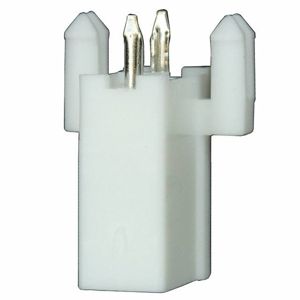

0039299027
