0022281020
Molex
Molex

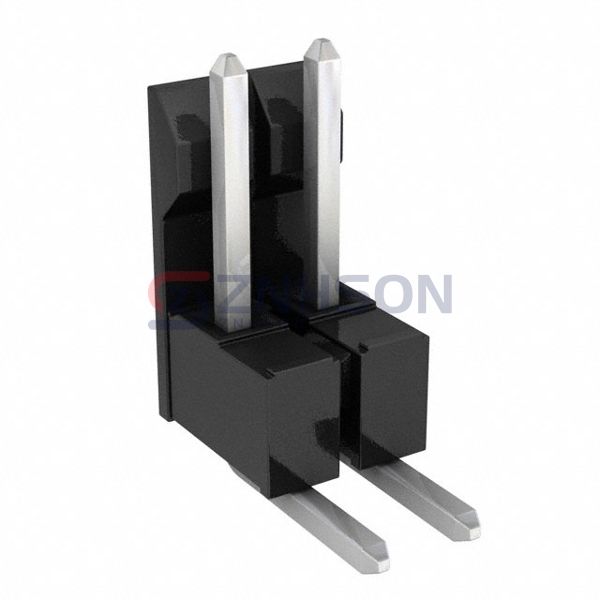

CONN HEADER R/A 2POS 2.54MM
$0.28
Available to order
Reference Price (USD)
1+
$0.28000
10+
$0.26600
100+
$0.18620
500+
$0.15960
1,000+
$0.13300
5,000+
$0.11400
10,000+
$0.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022281020 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Obsolete
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.284" (7.21mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
