0022142044
Molex
Molex

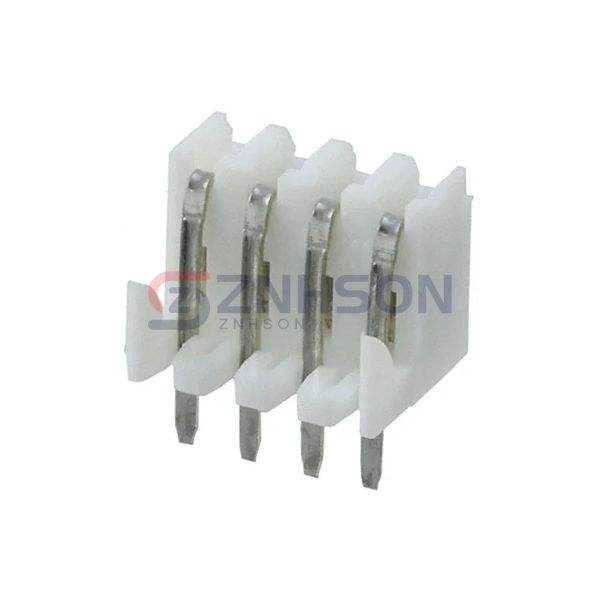

CONN RCPT 4POS 0.1 TIN PCB
$0.75
Available to order
Reference Price (USD)
1+
$0.75000
500+
$0.7425
1000+
$0.735
1500+
$0.7275
2000+
$0.72
2500+
$0.7125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022142044 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets are engineered for precision and reliability. With features like gold-plated contacts and IP-rated housings, they excel in critical applications. From consumer electronics to industrial controls, they ensure flawless operation. Request a sample or quote today!
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom Entry
- Contact Type: Non-Gendered
- Style: Board to Board or Cable
- Number of Positions: 4
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Insulation Color: White
- Insulation Height: 0.311" (7.90mm)
- Contact Length - Post: 0.132" (3.35mm)
- Operating Temperature: -40°C ~ 80°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 2.5A
- Voltage Rating: 250VAC
