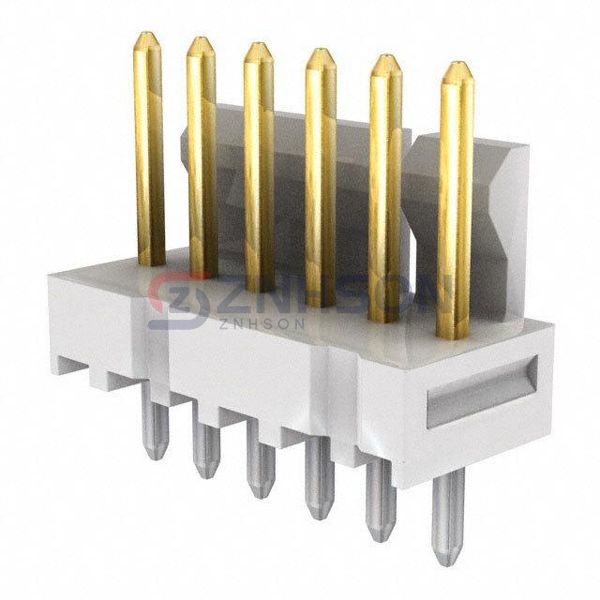

0022112066
Molex
Molex
CONN HEADER VERT 6POS 2.54MM
$0.90
Available to order
Reference Price (USD)
1+
$0.90000
10+
$0.78800
100+
$0.67980
500+
$0.55620
1,000+
$0.49440
5,000+
$0.43260
10,000+
$0.41097
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022112066 Molex Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Molex for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.187" (4.75mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
