0022057095
Molex
Molex

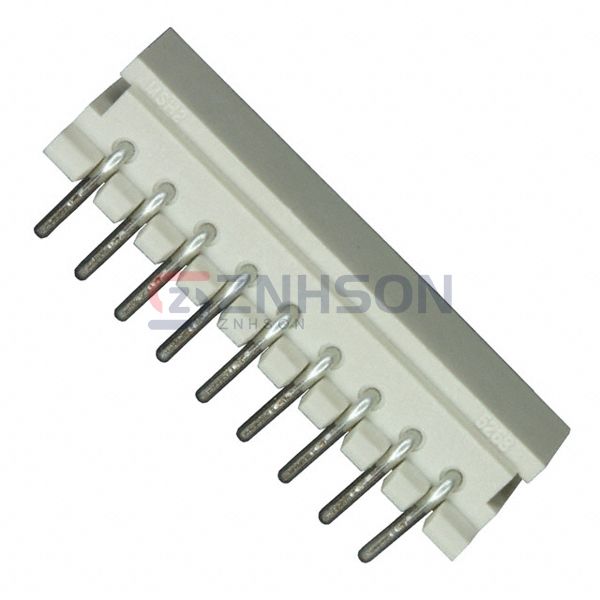

CONN HEADER R/A 9POS 2.5MM
$0.53
Available to order
Reference Price (USD)
1+
$0.53000
500+
$0.5247
1000+
$0.5194
1500+
$0.5141
2000+
$0.5088
2500+
$0.5035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022057095 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 160.0µin (4.06µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
