0022052151
Molex
Molex
CONN HEADER R/A 15POS 2.54MM
$1.67
Available to order
Reference Price (USD)
1+
$1.21000
10+
$1.06600
100+
$0.91980
500+
$0.75258
1,000+
$0.66896
5,000+
$0.58534
10,000+
$0.55607
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

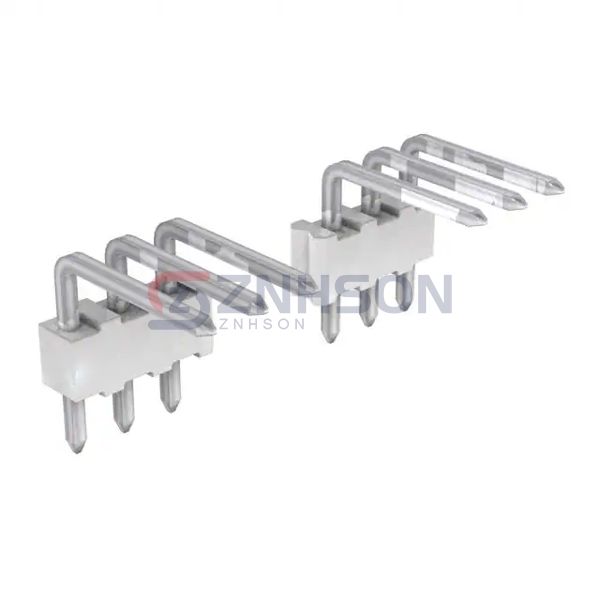

The 0022052151 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.369" (9.37mm)
- Contact Length - Post: 0.124" (3.15mm)
- Overall Contact Length: -
- Insulation Height: 0.130" (3.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
