0022035065
Molex
Molex

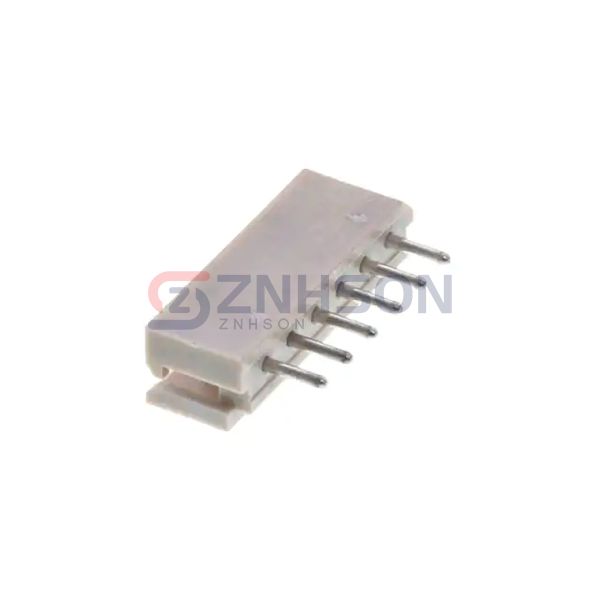

CONN HEADER VERT 6POS 2.5MM
$0.34
Available to order
Reference Price (USD)
1+
$0.34000
500+
$0.3366
1000+
$0.3332
1500+
$0.3298
2000+
$0.3264
2500+
$0.323
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022035065 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.350" (8.89mm)
- Insulation Height: 0.232" (5.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): -
- Voltage Rating: -
